T05_centrifuge

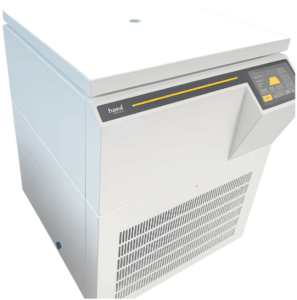

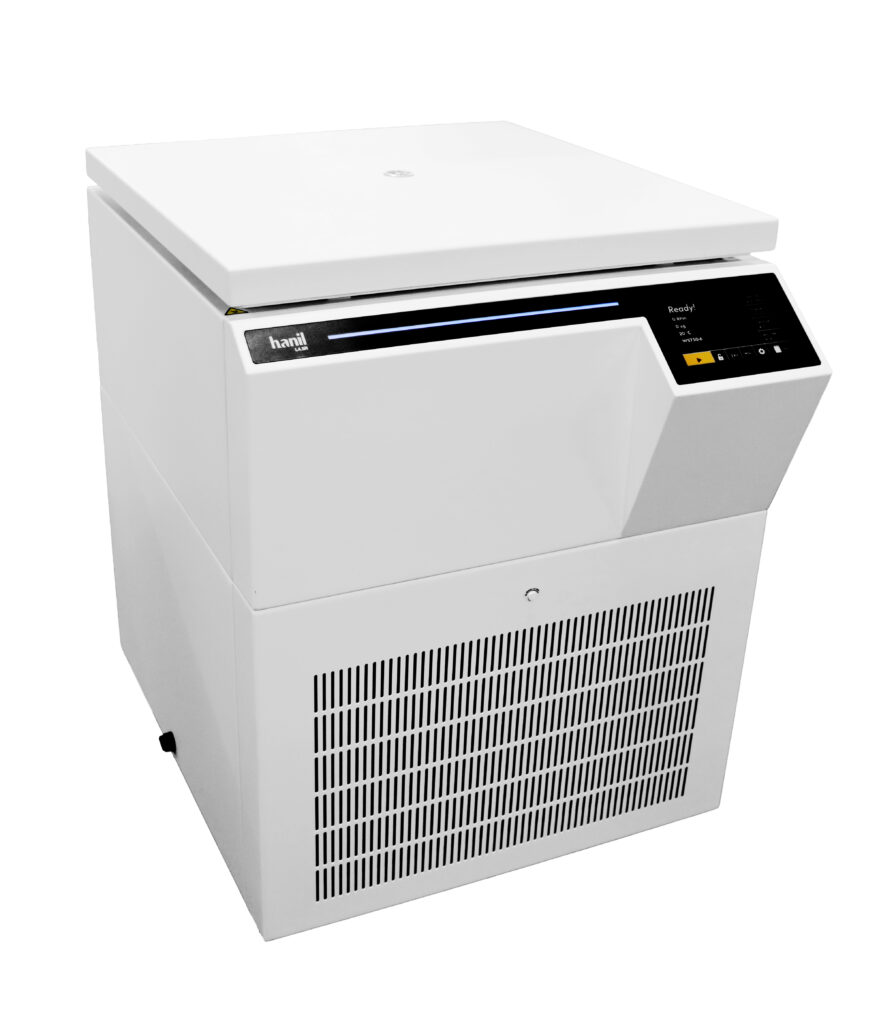

L4.5R

Large Capacity Centrifuge



– Max. RPM  : 4,500 rpm
– Max RCF : 5,094 xg
​- Max. Capacity :  6 x 750 mL
– Dimension (W x D x H): 681 x 795 x 920 mm
– Weight: 234 kg

Product Features



• Well recognized model in blood banks and large sample handling laboratories
• Optimized for consistent separation of plasma, buffy coat, RBC, etc.
• Windshield rotor to reduce the air resistance and enable to spin over 4,000 rpm
• Dual ramp acceleration and deceleration profile for gentle and quick running
• Ergonomically arranged controls with a 7-inch touch display providing comprehensive information
• Imbalance cutoff and tracking
• Excellent temperature control
• Easy to clean specially coated glossy surface

Max. RPM
4,500 rpm
Max. RCF
5,094 xg
Max. capacity​
6 x 750 mL
ACC/DEC ramps​
10/10 steps
Temperature range
-10℃ to 40℃
Time control​
< 100 hr, continuous,pulse
Program memory​
100
Imbalance cutoff / tracking​
Yes
Rotor identification​
Automatic
Dimension (W x D x H, mm)
681 x 795 x 920
Weight without rotor
234 kg
Noise level
>≤ 65 dB
Power requirement (VA)
1,830
Power input (V, Hz)
210~240 V, 50/60 Hz (110V optional)​
Cat. No.
L4.5R





WS750-6

∠90°
Max RPM : 4,500 rpm
Size (ø x H) :
ø262 x 262 mm(w/o windshield)
Incl. a windshield and a lid

Buckets/Adaptors for WS750-6
Round Bucket
B750S
Capacity:750 mL
* Cap Available (optional)
Round Bucket
B750
Capacity:750 mL
Cap
BL750-6/ BL750-C-6
MicroTiter Plate Pack
TM96
(750-6)
Adaptor
TR500
(750)
Adaptor
TR500c
(750)
Adaptor
TR250
(750)
Adaptor
TR250c
(750)
Adaptor
TR50-7N
(750)
Adaptor
TR50c-5N
(750)
Adaptor
TR15-19
(750)
Adaptor
TR15c-14
(750)
Adaptor
TR10-21
(750)
Adaptor
TR5-24
(750)
Buckets and Tube Racks of  WS750-6
Bucket Required Adaptor Tube Capacity
Bottom Type
Tube per
Adaptor/Rotor
bore
(Øx L, mm)
Max. Height
for tube fit
(mm)
(w/ cap)
Max. Height
for tube fit (mm)
(w/o cap)
Max. RPM(rpm)
Max. RCF(xg)
B750S / B750
BL750-6/ BL750-C-6BL750-6 ; Black cap
BL750-C-6 ; Clear cap

Radius : 225 mm
Bucket bore (Øx L,mm) :
99 x 103
Max. height for tube fit :
128 mm (w/ cap),
157.5 mm (w/o cap)
Incl. a windshield and a lid

750 mL
Flat
1 / 6 99 x 103   157.5 4,500
5,094
TR500(750) 500 mL
Flat
1 / 6 75.5 x 98.7 124.7 141.3 4,500
5,042
TR500c(750) 500 mL conical
Conical
1 / 6 99 x 58 128 155 4,500
5,071
TR250(750) 250 mL
Flat
1 / 6 62.3 x 87 124 153 4,500
5,051
TR250c(750) 250 mL conical
Conical
1 / 6 60.5 x 124.4 124.5 153 4,500
5,037

TR50-7N(750)
50 mL
Round
7 / 42 29.2 x 97 119(outer) 124(inner) 125(outer) 153(inner) 4,500
5,026
TR50c-5N(750) 50 mL conical
Conical
5 / 30 29 x 91 120 126 4,500
5,037
TR15-19(750) 15 mL
Round
19 / 114 17.2 x 87 115(outer) 124(inner) 1133.3(outer) 157(inner) 4,500
5,026
TR15c-14(750) 15 mL conical
Conical
14 / 84 17 x 89 113.3(outer) 124(inner) 122.1(outer) 157(inner) 4,500
5,071
TR10-21(750) 10 mL
Round
21 / 126 16 x 87 115(outer) 124(inner) 130.6(outer) 157(inner) 4,500
5,026
TR5-24(750) 3 mL / 5 mL
Round
24 / 144 13.2 x  60 (3 mL)
13.2 x  87 (5 mL)
115(outer) 124(inner) 137.3(outer) 157(inner) 4,500
5,026

TM96(750-6)

Radius : 191.9 mm
MTP holder size (w x d, mm): 88 x 128.5

MTP, DWP 1 / 6 88 x 128.5 x 42 4,000
4,345
