HyperCOOL 9090 Plus

Freeze Dryers

– Ultimate Chamber Temp (at RT) :  -90
– ICE Condensing Capacity: 9.8 kg
– Chamber Volume : 12 L
– Trap (Chamber) Size (Ø x H) : 305 x 355 mm
– Dimension(W x D x H): 550 x 708 x 885 mm
– Weight: 130 kg

Product Features



• Effective for fast freeze drying of any samples
​• HyperCOOL by itself, when equipped with manifolds or chambers, becomes a versatile freeze dryer.
• Extended applications for concentrating wider range or larger volume of solvents.
• The compatible vacuum rotary vane pump generates vacuum down inside the chamber.
• Up to 8 external bottles can be accommodated by the manifolds of HyperCOOL.
• Automatic De-Vac and De-Ice functions installed


Applications

• Study and QC of dried foods like dried fruits, meats, etc.
• Stock of bacteria, virus, fungi, etc.
• Seed preservation of plants or mushrooms
• Improved preservation of flowers and dry display study
• Pharmaceutical study and production
• Research and production of vaccine and antidote
• Tissue or cell preparation for EM analysis
• Medical research
Model
HC9090PL
Ultimate chamber temp (℃)
-90
Chamber volume (L)
25.9
Trap (Chamber) size (Ø x H)
305 x 349
ICE Condensing capacity (kg)
9
Display Type
7″ touch LCD with graphic display
Display Parameters
Vacuum, Time, Temperature (tray, sample,chamber), Real Time Graph
Control

ON / OFF (Vacuum, Defrost), Heating Tray Temperature

Power requirement (Resting, VA)
1500
Power supply(V/Hz)
AC 220-230 V, 60 Hz
(50 Hz, 110 V optional)
Dimension (W x D x H, mm)
600 x 708 x 885
Weight (kg)
149.5
Cat. No.
HHC-9090PL





Essential Accessories for Full System Configuration



Description Cat.No.

Glass base plate for HyperCOOL to connect

manifold accessories to the main body.

HHC-CPB-G

HHC-CPB(9)-G (for HHC-9090PL)

Acrylic base plate for HyperCOOL to connect

chamber type accessories to the main body.

HHC-CPB

HHC-CPB(9) (for HHC-9090PL)

Rotary vane pump

Pumping speed: 50Hz – 200 L/min

Ultimate pressure: 1 x 10-3 torr

GVP-W2V20
Oil mist trap for rotary vane pump GVP-WOF150





Standard Manifold for Freeze Drying

Manilfold (4, 6, 8, 12)

Manifold type accessory designed for freeze drying samples in a Flask.

Depending on the number of samples per run, (4, 6, 8 or 12) valve manifold can be selected. Configured with Glass base plate.

*Provides excellent chemical resistance for organic or rigorous samples.

Description No. of Valve Cat.No.
Tree-type mamifod 4 HHC-MF-4V
6 HHC-MF-6V
T-type mamifod 8 HHC-MF-8V
Doubl (6+6) mamifod 12 HHC-MF-12V
Glass Base plate for 3055/3110   HHC-CPB-G
Glass Base plate for 9090PL   HHC-CPB(9)-G



Chamber

Chamber type accessory designed for freeze drying samples in vials.

Configured Basic SUS Rack with 3 x ø25cm trays (HC-CR25) and Acrylic base plate.

*Cannot be used for organic samples or rigorous samples

Description Cat.No.
Acrylic chamber with top HHC-CH30P
Acrylic Base plate for 3055/3110 HHC-CPB
Acrylic Base plate for 9090PL HHC-CPB(9)
SUS rack with 3 trays HHC-CR25
Additional tray (1EA) HHC-CR-TS



Chamber + Manifold (4, 8)

Chamber type accessory designed for freeze drying samples in vials and also in flasks through the integrated manifold (4 or 8).

Configured with Basic SUS Rack with 3 x ø25cm trays (HC-CR25) and Acrylic base plate,

*Cannot be used for organic samples or rigorous samples

Description Cat.No.
Acrylic chamber with 4 valve top HHC-CH30-4V
Acrylic chamber with 8 valve top HHC-CH30-8V
Acrylic Base plate for 3055/3110 HHC-CPB
Acrylic Base plate for 9090PL HHC-CPB(9)
SUS rack with 3 trays HHC-CR25
Additional tray (1EA) HHC-CR-TS

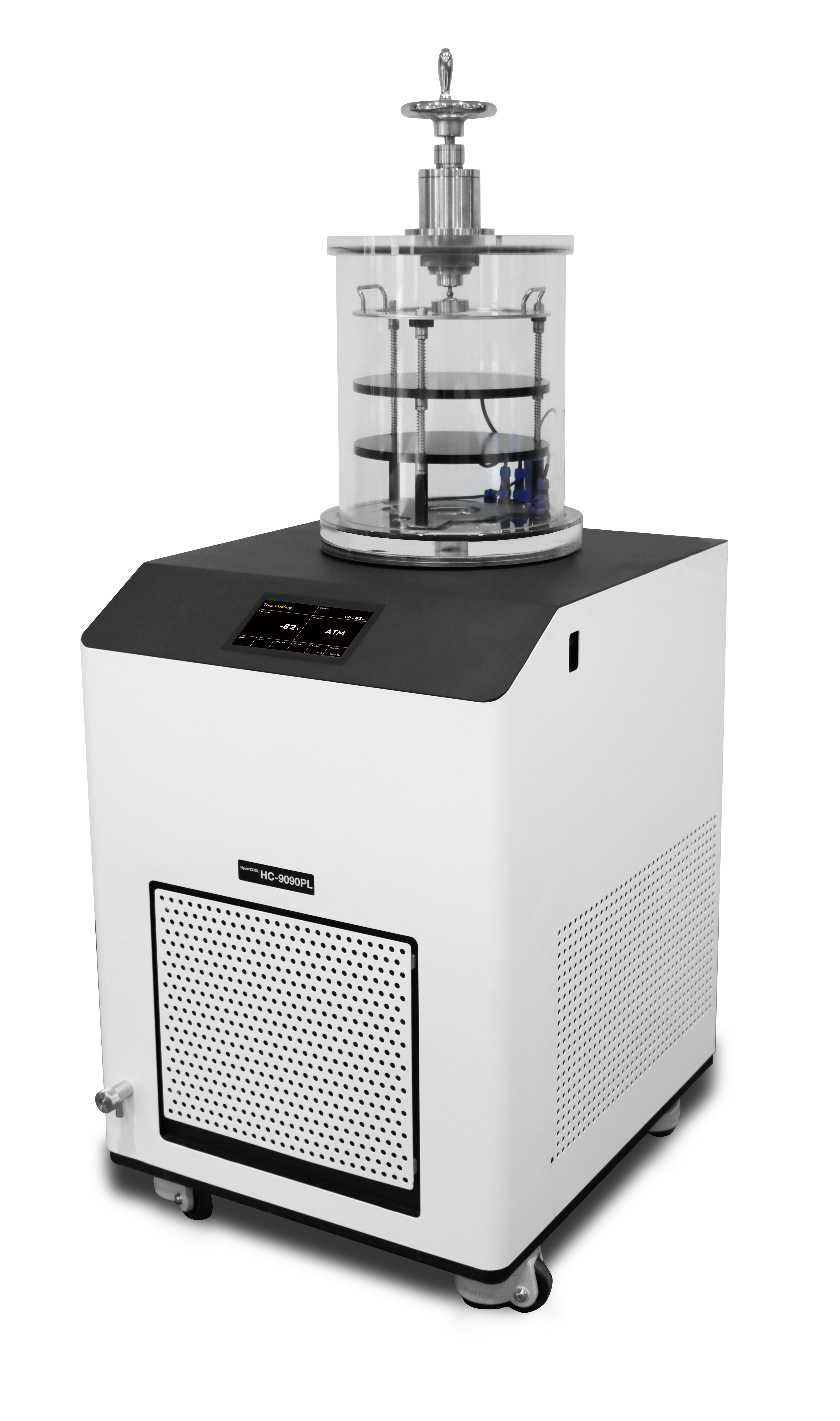

Stoppering Chamber

Stoppering Chamber type accessory designed for freeze drying samples in vials and to seal them under vacuum state.

*Cannot be used for organic samples or rigorous samples



Description Cat.No.
Stoppering Acrylic chamber including rack & trays HHC-SP30M
Acrylic Base plate for 3055/3110 HHC-CPB
Heating shelf stoppering chamber for secondary drying only for 9090PL model. HHC-HSM6003





Compatible Accessories for Manifolds



Description Cat.No.

Freeze drying flask for manifold drying.

ø60 (150 / 300 mL)

ø90 (300W ~ 1,200 mL)

HHC-AGF150

HHC-AGF300

HHC-AGF300W

HHC-AGF600

HHC-AGF900

HHC-AGF1200

2 mL tube holder for (900 / 1,200) mL flasks,

3 x 20 x 2 mL

HHC-TR9-2 /

HHC-TR12-2

15 mL tube holder for (900 / 1,200) mL flasks,

12 x 15 mL conical

HHC-TR9-15 /

HHC-TR12-15

50 mL tube holder for (900 / 1,200) mL flasks,

4 x 50 mL conical

HHC-TR9-50 /

HHC-TR12-50

Ampoule pod for 16 x ø13.5 mm Ampoules,

incl. 2 tubing clamps and 16 tube caps

HHC-APC-16

Vacuum Box for 6 x MTP or 3 x DWP

(Max. height 25/51 mm)

HHC-VBOX-SET
