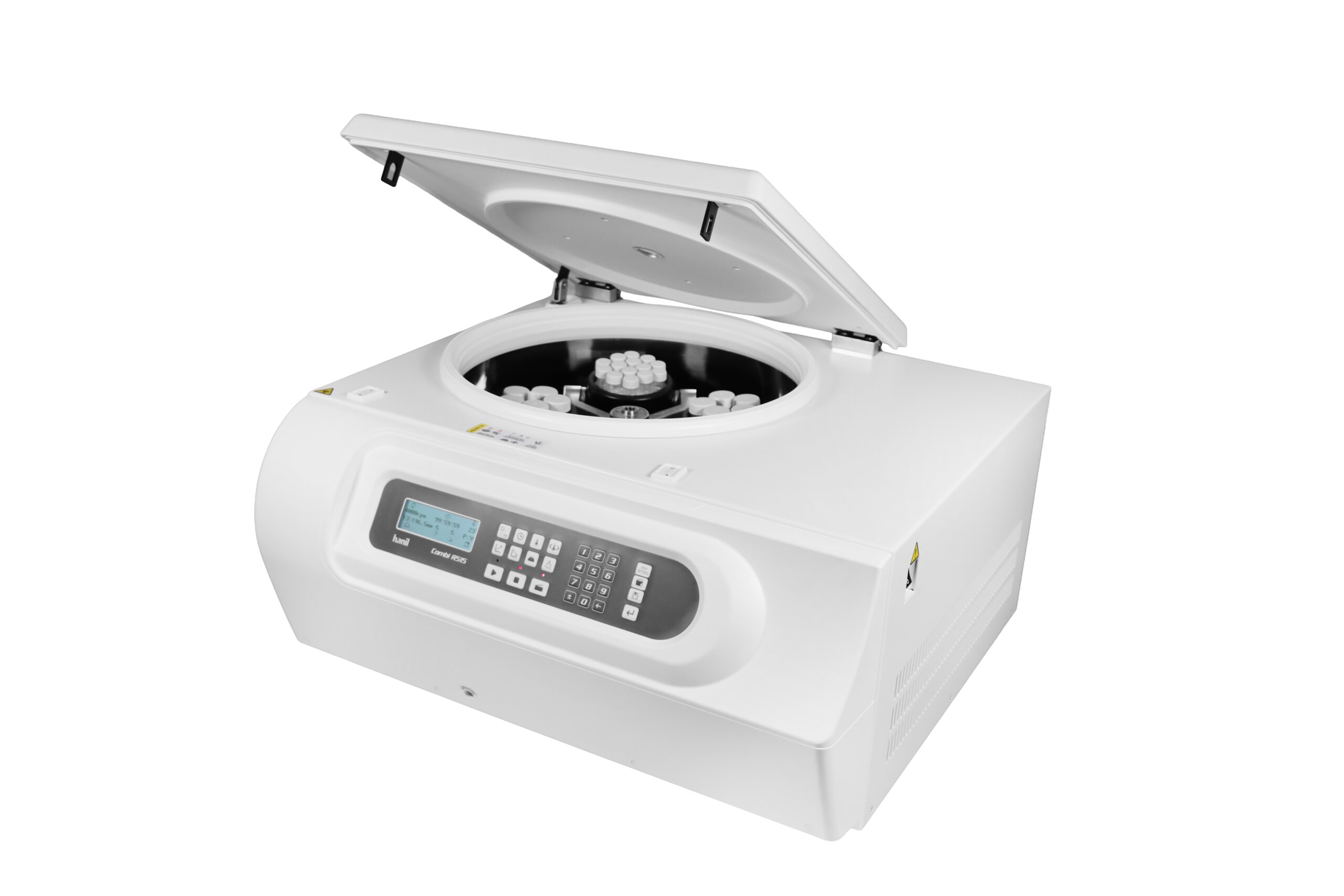

Multi-purpose Centrifuge
– Max. RPM (Fixed angle/Swing-out) : 15,000 / 4,500rpm
– Max. RCF(Fixed angle/Swing-out) : 25,353 / 4,392xg
– Max. Capacity(Fixed angle/Swing-out) : 6 x 250mL / 4 x 750 mL
– Dimension(W x D x H) : 723 x 665 x 387 mm
– Weight: 112 kg
Product Features
• Real multi-purpose centrifuge for using both fixed angle and swing-out rotors
• Robust and practical benchtop design
• For up to 15,000 rpm (24,000 xg) with 6 x 85 mL
• Large capacity swing-out rotor for 4 x 500 mL up to 4,500 rpm (4,300 xg)
• A variety of tube adaptors to be fit into 750 mL and 500 mL swing buckets
• Automatic rotor identification
• Imbalance cutoff and tracking
• Intuitive and easy control and extensively informative display
• Smoothly working, motorized lid opening and closure
• Cooled using CFC free, environmental friendly refrigerant ( on request )
• Excellent temperature control
• Drainage from the chamber hole of refrigerated models could be cleaned daily
• Password lock function
|
Max.RPM (Fixed angle/Swing-out)
|
15,000/4,500rpm
|
|
Max. RCF (Fixed angle/Swing-out)
|
25,353 / 4,392 xg
|
|
Max. capacity (Fixed angle/Swing-out)
|
6 x 250 mL, 36 x 1.5 / 2.0 mL /
4 x 750 mL, 76 x 15 mL, 4 MTPs |
|
ACC/DEC rapms
|
10 / 10 steps
|
|
Temperature range
|
-10ºC ~ 40ºC
|
|
Time control
|
< 100 hr, pulse, continuous
|
|
Program memory
|
100
|
|
Imbalance cutoff / tracking
|
Yes
|
|
Rotor identification
|
Automatic
|
|
Dimension (W x D x H, mm)
|
723 x 665 x 387
|
|
Weight without rotor
|
95 kg
|
|
Noise level
|
≤ 65 dB
|
|
Power requirement (VA)
|
1,940 VA
|
|
Power input (V, Hz)
|
210V~240V, 50/60 Hz (110V optional)
|
|
Cat. No.
|
CB-R515
|
| Rotor | Tube Capacity | Required Adaptor |
Bore Ø x L(mm) Radius(mm) |
Max.RPM(rpm) Max.RCF(xg) |
|
|---|---|---|---|---|---|
 A0.2-48 |
Hole angle : ∠45° Max. Capacity : 48 x 0.2 mL Size (ø x H) : ø200 x 56 mm Incl. a coupling bolt lid |
0.2 mL | – | 6.5 x 17 88.9 |
12,500 15,530 |
| 0.2 mL PCR strip | |||||
 A2.0-24 |
Hole angle : ∠40° Max. Capacity : 24 x 1.5/2.0 mL Size (ø x H) : ø202 x 79 mm Max. height for tube fit : 46 mm Incl. a coupling bolt lid |
1.5/2.0 mL | – | 11.5 x 38 80.8 |
15,000 20,325 |
| 0.5 mL |  TR0.5 |
8 x 37 76.5 |
15,000 19,244 |
||
| 0.2 mL |  TR0.2 |
6 x 21 67 |
15,000 16,854 |
||
| A2.0-36 |
Hole angle : ∠30° Max. Capacity : 36 x 1.5/2.0 mL Size (ø x H) : ø240 x 64 mm Max. height for tube fit : 49 mm Incl. a coupling bolt lid |
1.5/2.0 mL Micro-filter tube |
– | 11 x 37.5 115.7 |
14,000 25,353 |
| 0.5 mL | TR0.5 |
8 x 37 111 |
14,000 24,323 |
||
| 0.2 mL | TR0.2 |
6 x 21 100 |
14,000 21,913 |
||
 A10-12 |
Hole angle : ∠36° Max. Capacity : 12 x 10 mL Size (ø x H) : ø179.9 x 82 mm Max. height for tube fit : 87.1 mm Incl. a coupling bolt lid |
10 mL Round | – | 16.3 x 74.5 85.1 |
15,000 21,407 |
 A15S-12 |
Hole angle : ∠30° Max. Capacity : 12 x 15 mL Size (ø x H) : ø205 x 109 mm Max. height for tube fit : 109.5 mm Incl. a coupling bolt lid |
15 mL Round | – | 19 x 96 96.1 |
15,000 24,174 |
 A15c-12 |
Hole angle : ∠25° Max. Capacity : 12 x 15 mL conical Size (ø x H) : ø215 x 121 mm Max. height for tube fit : 123.2 mm Incl. a coupling bolt lid |
15 mL Conical | – | 17 x 115 99.4 |
15,000 25,004 |
 A50-6 |
Hole angle : ∠30° Max. Capacity : 6 x 50 mL Size (ø x H) : ø200 x 109 mm Max. height for tube fit : 122.7 mm Incl. a coupling bolt lid |
– | – | 29 x 100 96.1 |
15,000 24,174 |
| 15 mL Round |  TR15(50) |
17 x 94 89.9 |
15,000 22,614 |
||
| 15 mL Conical |  TR15c(50) |
17 x 105 91 |
15,000 22,891 |
||
 A50c-6 |
Hole angle : ∠23° Max. Capacity : 6 x 50 mL Size (ø x H) : ø205.7 x 119 mm Max. height for tube fit : 118.1 mm Incl. a coupling bolt lid |
50 mL Conical | – | 30 x 108.6 91 |
15,000 22,891 |
 A50-8 |
Hole angle : ∠30° Max. Capacity : 8 x 50 mL Size (ø x H) : ø213 x 110.7 mm Max. height for tube fit : 110.7 mm Incl. a coupling bolt lid |
50 mL Round | – | 29 x 100 98.9 |
15,000 24,878 |
| 15 mL Round | TR15(50) |
17 x 94 92.8 |
15,000 23,344 |
||
| 15 mL Conical | TR15c(50) |
17 x 105 93.9 |
15,000 23,621 |
||
 A85-6 |
Hole angle : ∠25° Max. Capacity : 6 x 85 mL Size (ø x H) : ø209.1 x 112 mm Max. height for tube fit : 115.4 mm Incl. a coupling bolt lid |
85 mL Round | – | 38.3 x 95 97.6 |
15,000 24,551 |
| 50 mL Round |  TR50(85) |
29 x 95 92.9 |
15,000 23,369 |
||
| 50 mL Conical |  TR50c(85) |
29.5 x 100 93 |
15,000 23,394 |
||
| 15 mL Round |  TR15(85) |
17 x 94 89 |
15,000 22,388 |
||
| 15 mL Conical |  TR15c(85) |
17 x 100 89.2 |
15,000 22,438 |
||
 A250-6 |
Hole angle : ∠25° Max. Capacity : 6 x 250 mL Size (ø x H) : ø295.6 x 147.8 mm Max. height for tube fit : 132mm Incl. a coupling bolt lid |
250 mL Flat | – | 62 x 103 138.3 |
8,000 9,896 |
|
|
Buckets/Adaptors for S750-4 | ||||||
 Round BucketB750S Capacity:750 mL * Cap Available (optional) |
 Round BucketB750 Capacity:750 mL |
 CapBL750 |
 MicroTiter Plate PackTM96 (750-4) |
 AdaptorTR500 (750) |
 AdaptorTR500c (750) |
 AdaptorTR250 (750) |
|
 AdaptorTR250c (750) |
 AdaptorTR50-7N (750) |
 AdaptorTR50c-5N (750) |
 AdaptorTR15-19 (750) |
 AdaptorTR15c-14 (750) |
 AdaptorTR10-21 (750) |
 AdaptorTR5-24 (750) |
|
S750-4| Buckets and Tube Racks of S750-4 | |||||||
| Bucket | Required Adaptor | Tube Capacity Bottom Type |
Tube per Adaptor/Rotor |
bore (Øx L, mm) |
Max. Height for tube fit(mm) (w/ cap) |
Max. Height for tube fit (mm) (w/o cap) |
Max. RPM(rpm) Max. RCF(xg) |
 B750S / B750 BL750Radius : 225 mm Bucket bore (Øx L,mm) : 99 x 103 Max. height for tube fit : 142 mm (w/ cap), 162.9 mm (w/o cap) Incl. a windshield and a lid |
– | 750 mL Flat |
1 / 4 | 99 x 103 | 142 | 158.5 | 4,000 3,515 |
 TR500(750) |
500 mL Flat |
1 / 4 | 75.5 x 98.7 | 140 | 157 | 4,000 3,476 |
|
 TR500c(750) |
500 mL conical Conical |
1 / 4 | 99 x 58 | 137 | 157 | 4,000 3,497 |
|
 TR250(750) |
250 mL Flat |
1 / 4 | 62.3 x 87 | 137 | 152.5 | 4,000 3,481 |
|
 TR250c(750) |
250 mL conical Conical |
1 / 4 | 60.5 x 124.4 | 137.5 | 148.6 | 4,000 3,470 |
|
 TR50-7N(750) |
50 mL Round |
7 / 28 | 29.2 x 97 |
116.7(outer) 128.2(inner) |
133(outer) 144.1(inner) |
4,000 3,497 |
|
 TR50c-5N(750) |
50 mL conical Conical |
5 / 20 | 29 x 91 | 122 | 133 | 4,000 3,470 |
|
 TR15-19(750) |
15 mL Round |
19 / 76 | 17.2 x 87 |
129.1(outer) 137(inner) |
136.2(outer) 153.2(inner) |
4,000 3,461 |
|
 TR15c-14(750) |
15 mL conical Conical |
14 / 56 | 17 x 89 |
127.7(outer) 139(inner) |
132(outer) 153.8(inner) |
4,000 3,461 |
|
 TR10-21(750) |
10 mL Round |
21 / 84 | 16 x 87 |
131.6(outer) 137(inner) |
134.8(outer) 153.6(inner) |
4,000 3,461 |
|
 TR5-24(750) |
3 mL / 5 mL Round |
24 / 96 | 13.2 x 60 (3 mL) 13.2 x 87 (5 mL) |
131.6(outer) 137(inner) |
138.7(outer) 153.7(inner) |
4,000 3,461 |
|
|
Radius : 163.5 mm |
MTP, DWP | 1 / 4 | – | 4,000 2,925 |
|||
TM96(750-4) S500-4∠90° Max RPM : 4,500 Size (W x D x H) : 262 x 262 x 55 mm |
Buckets/Adaptors for S500-4 | ||||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
||
Round Bucket
Cap
Adaptor
Adaptor
Adaptor
Adaptor
Adaptor
Adaptor
Adaptor
Adaptor| Buckets and Tube Racks of S500-4 | |||||||
| Bucket | Required Adaptor | Tube Capacity Bottom Type |
Tube per Adaptor/Rotor |
bore (Øx L, mm) |
Max. Height for tube fit (mm) (w/ cap) |
Max. Height for tube fit (mm) (w/o cap) |
Max. RPM(rpm) Max. RCF(xg) |
 B500/BL500Radius : 194 mm Bucket bore (ø x L, mm) : 80 x 111 Max. height for tube fit : 145.7mm (w/cap), 157 mm (w/o cap) Incl. a cap Max. RPM: 4,500 Max. RCF:4,392 xg |
|||||||
 TR500(500) |
500 mL Flat |
1 / 4 | 73 x 125 | 141.5 | 143.6 | 4,500 4,347 |
|
 TR250(500) |
250 mL Flat |
1 / 4 | 62 x 100 | 135 | 146.6 | 4.500 4,290 |
|
 TR100(500) |
100 mL (85 mL) Round |
1 / 4 | 38.5 x 84.5 | 139 | 150.9 | 4,500 4,290 |
|
 TR50-4(500) |
50 mL Round |
4 / 16 | 29.5 x 85.5 | 129 | 140.6 | 4,500 4,290 |
|
 TR50c-3(500) |
50 mL Conical |
3 / 12 | 30 x 90 | 128.3 | 140 | 4,500 4,302 |
|
 TR15-9(500) |
15 mL Round |
9 / 36 | 16.5 x 85 | 132.1 | 146.8 | 4,500 4,290 |
|
 TR15c-7(500) |
15 mL Conical |
7 / 28 | 17 x 95.5 | 128.4 | 140.1 | 4,500 4,313 |
|
 TR10-9(500) |
10 mL Round |
9 / 36 | 17 x 64 | 132.9 | 144.6 | 4,500 4,279 |
|
 TR5-9(500) |
5 mL Round |
9 / 36 | 13 x 64 | 133.8 | 145.5 | 4,500 4,256 |
|
 TM96(500-4) Radius : 154 mm MTP holder size (w x d, mm) : 87 x 128.5 |
MTP, DWP |
1 / 4 | – | 4,000 2,755 |
|||
