G-FLD
Laboratory Fermentor
Dual-Type Lab-Scale Fermentor
High-Density Microbial Cultures with
Controlled Fed-Batch Fermentation
Product Features
- Optimized for High-Density Microbial Growth.
- Four Peristaltic Pumps, Each Individually Controlled for pH, DO, Anti-Foam, and Feeding.
- Intuitive Control via a 12″ Android Tablet for Ease of Operation.
- Accurate PID Temperature Control to Maintain Optimal Growth Conditions.
- Dual-Batch Operation: Allows for Simultaneous Cultivation of Two Separate Batches with Independent Control, Enabling Comparative Experiments under Different Conditions.

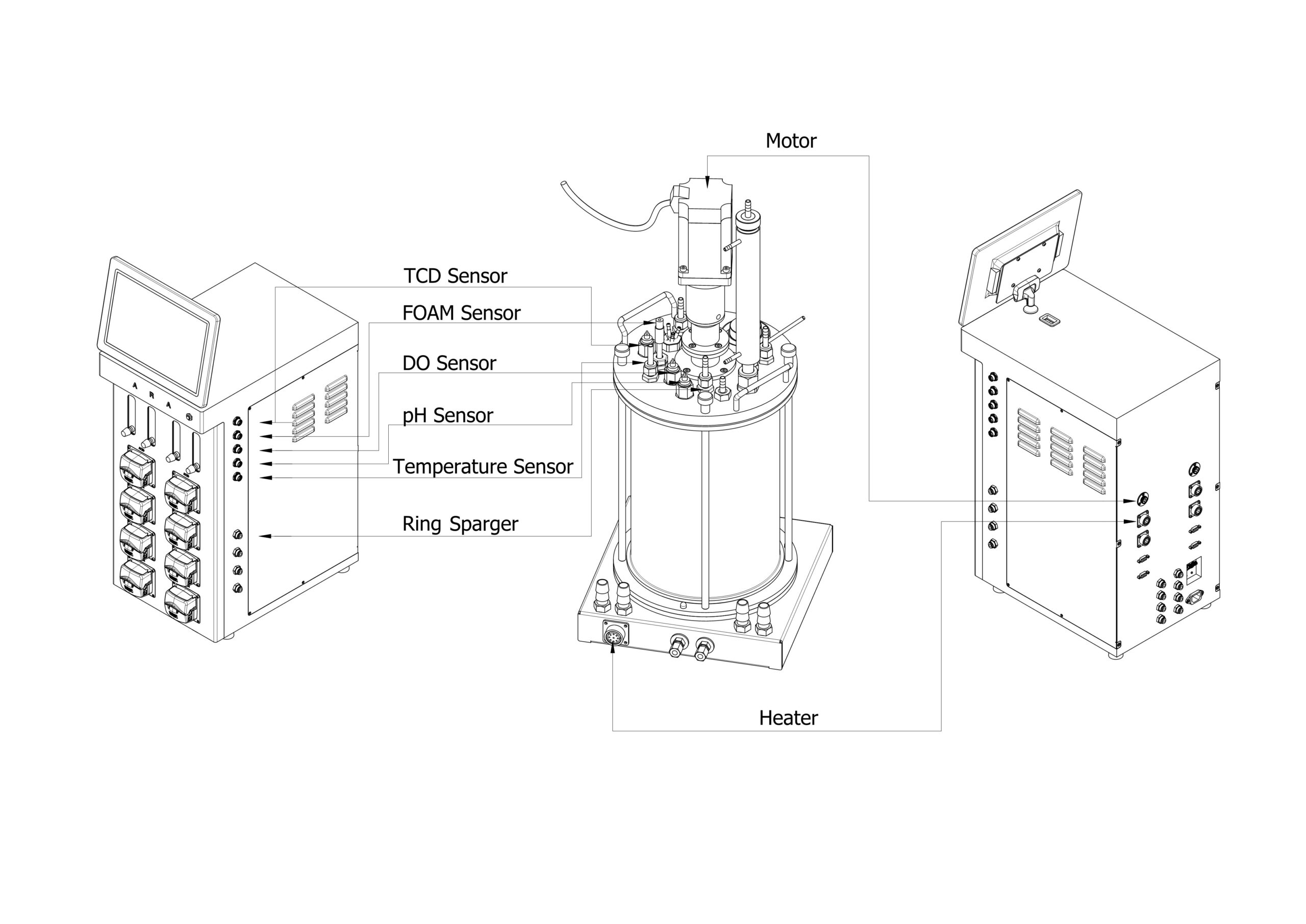

System Configuration, G-FLD

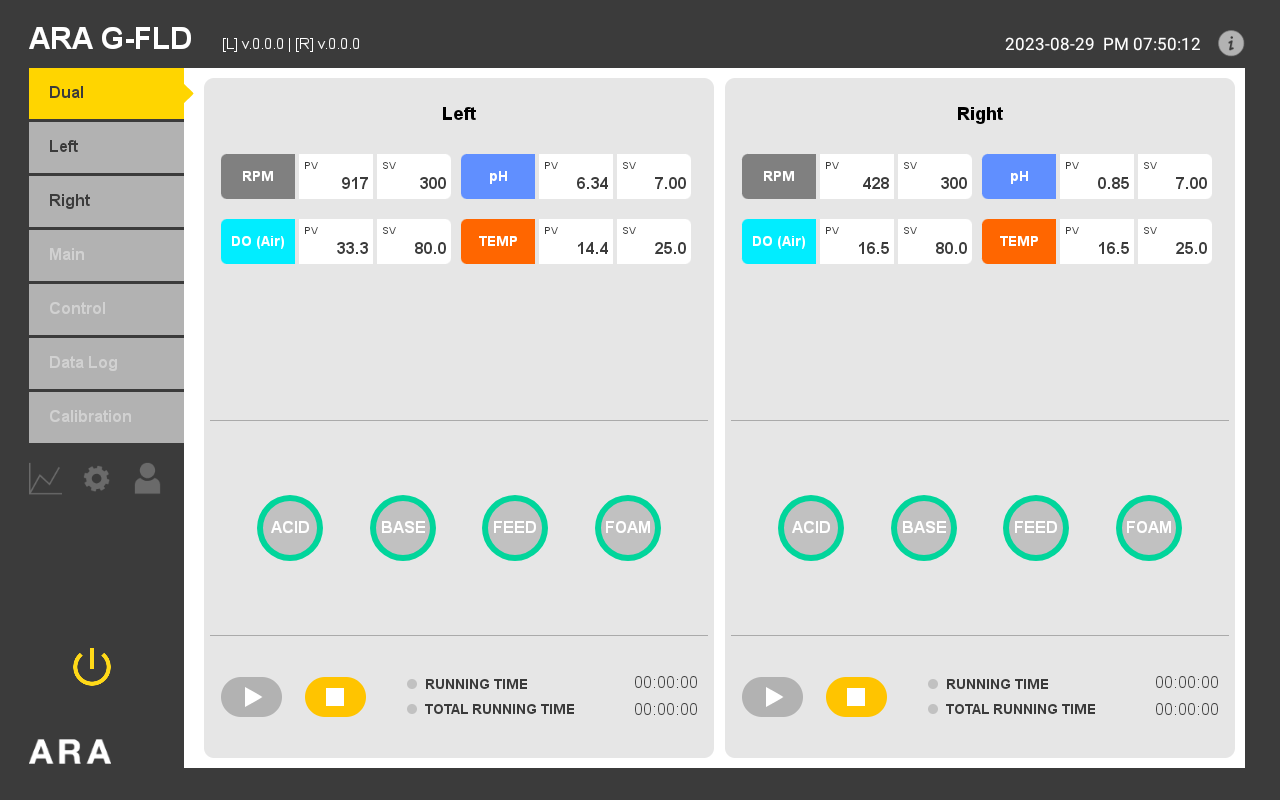

Main Control System
Applications
- Microbial Fermentation (Dual Vessel Concept)
- High-Density Microbial Cell Cultivation
- Extracellular Metabolite Production
- Intracellular Component Production (e.g., Recombinant Proteins, Enzymes)
- Fed-Batch Fermentation
| G-FLD | ||
| Controller | Display | 12″ Android Tablet |
| Feeding Pumps | Max. 4 (14 rpm) | |
| Dimension (W x D x H, mm) | 310 x 455 x 840 | |
| Weigh | 24 kg | |
| Agitation | RPM range | 100 ~ 1,200 rpm |
| Motor | DC motor | |
| Temp. Control Range (sensor) | 8 ~ 70 ℃ | |
| pH Control Range (sensor) | 0 ~ 14 | |
| DO Control Range (sensor) | 0 ~ 100 % | |
| Anti Foam Sensing | Conductivity type | |
| Peristaltic Pump | 114ST/DV(1~400rpm) | |
| Ratings | 220~230V, 50/60 Hz, Single phase | |
| Power requirement | 1700VA | |

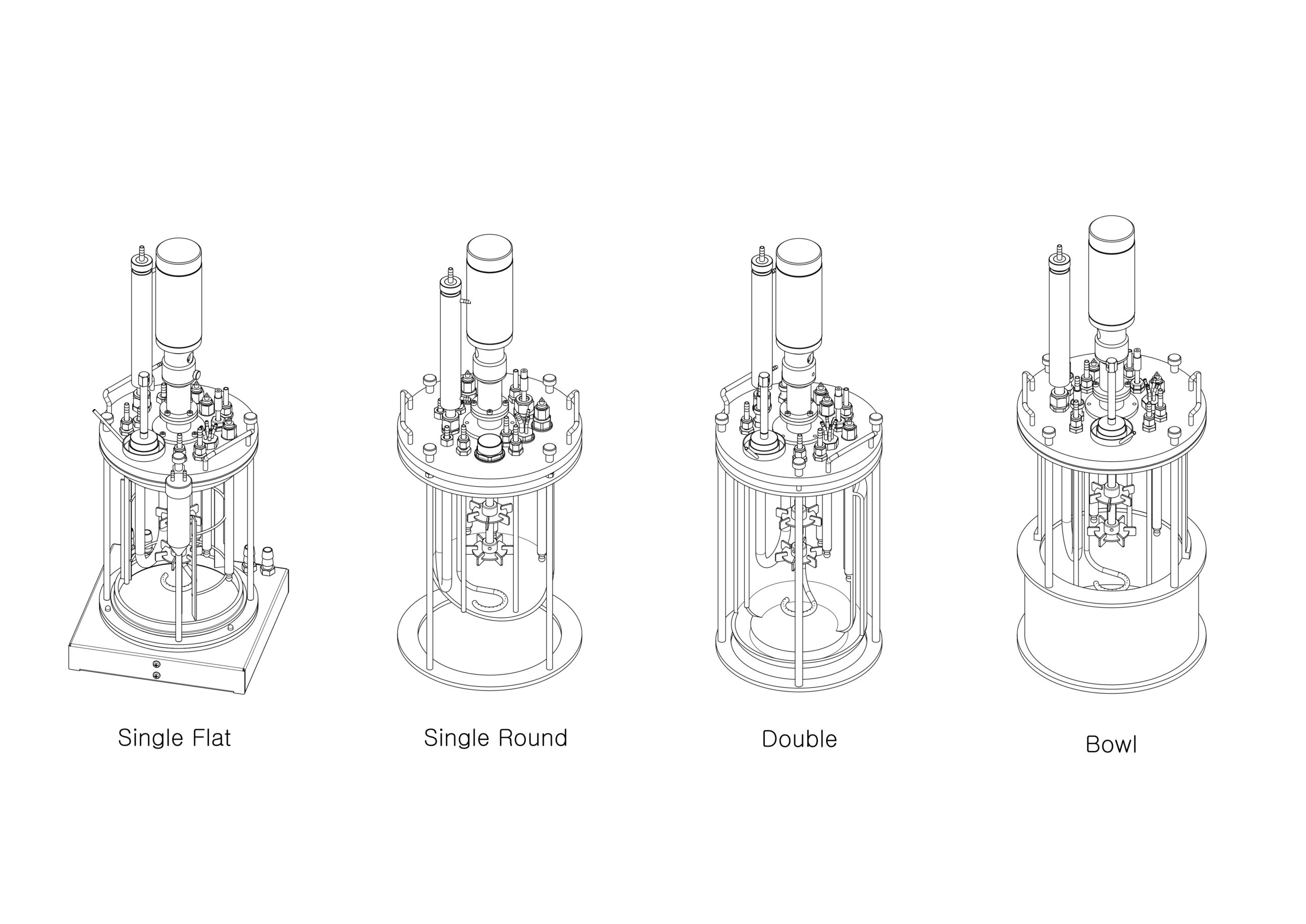

Availability of Vessel Types and Sizes
| Capacity Vessel Type |
1L | 2L | 3L | 5L | 7L | 10L |
| Single Flat Vessel | ● | ● | ● | ● | ||
| Single Round Vessel | ○ | ○ | ○ | ○ | ○ | ○ |
| Double Vessel | – | ○ | ○ | ○ | – | – |
| Bowl Vessel | – | – | – | – | ○ | ○ |
※ ● Standard Product, Available for Direct Purchase
※ ○ Custom-Made Product; Specifications, Pricing, and Lead Time Determined through Consultation
※ – Not Available
